LED Grid Screen

In the design of modern urban nightscapes and building facades, a significant challenge for designers and developers has always been how to achieve dynamic display and digital communication while ensuring adequate ventilation, natural light, and aesthetic appeal for the building. LED grille screens, as an emerging transparent mesh display solution, are gradually becoming the preferred choice for high-rise building exteriors and large curtain wall projects, thanks to their lightweight, self-cooling, high transparency, and modular features.

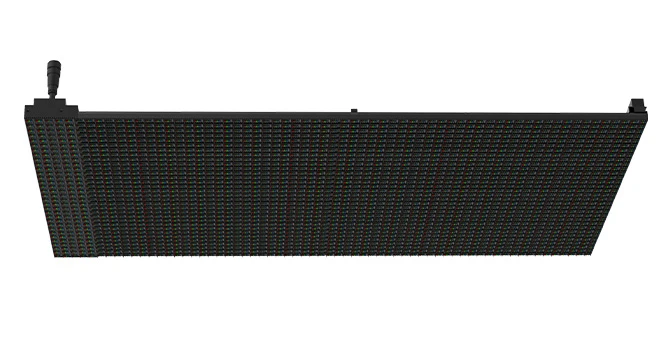

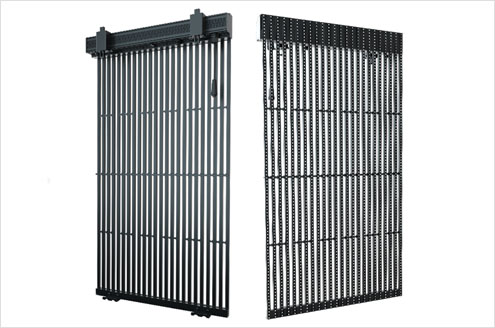

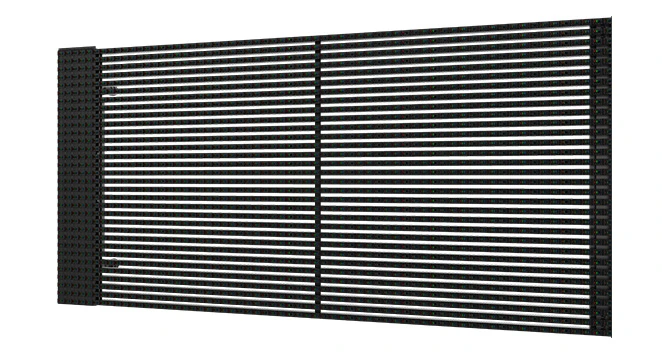

First, from a structural perspective, LED grille screens utilize metal or plastic grille panels with an aperture ratio of up to 50%–60%. SMD1921 LED beads are arranged in a regular grid on a supporting frame. Each standard module measures 1000×500mm and weighs only 4–5kg, making it significantly lighter than traditional glass light boxes or large screens. This ultra-high aperture ratio not only ensures ventilation and light transmission for the curtain wall itself but also significantly reduces wind load, requiring less structural reinforcement. This makes them particularly suitable for high-rise and cantilever structures.

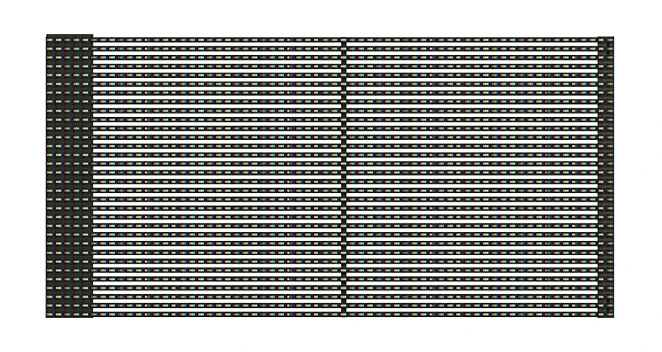

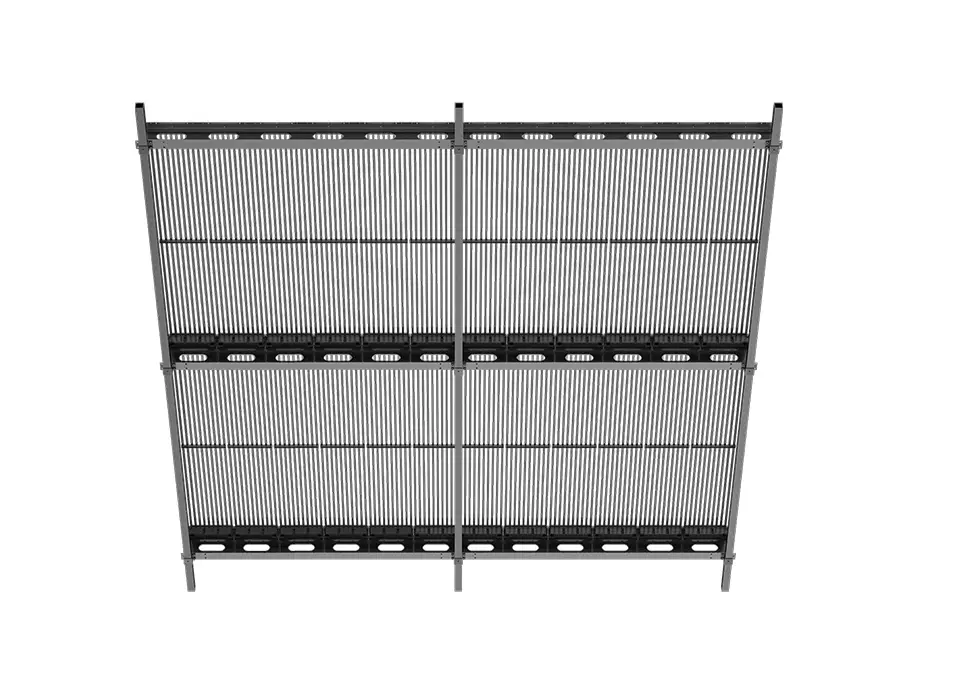

Secondly, easy installation is a major advantage of LED grille screens. Traditional large screens require complex brackets and cabinets, often needing air conditioning for cooling. In contrast, grille screens feature integrated latches, hidden guide rails, or hanging designs, allowing construction personnel to quickly assemble and fix them according to drawings. The average daily installation area can reach hundreds of square meters, greatly boosting efficiency. For on-site debugging, the modules have built-in standardized power and data interfaces, enabling "plug-and-play" wiring, which reduces labor costs and construction safety risks.

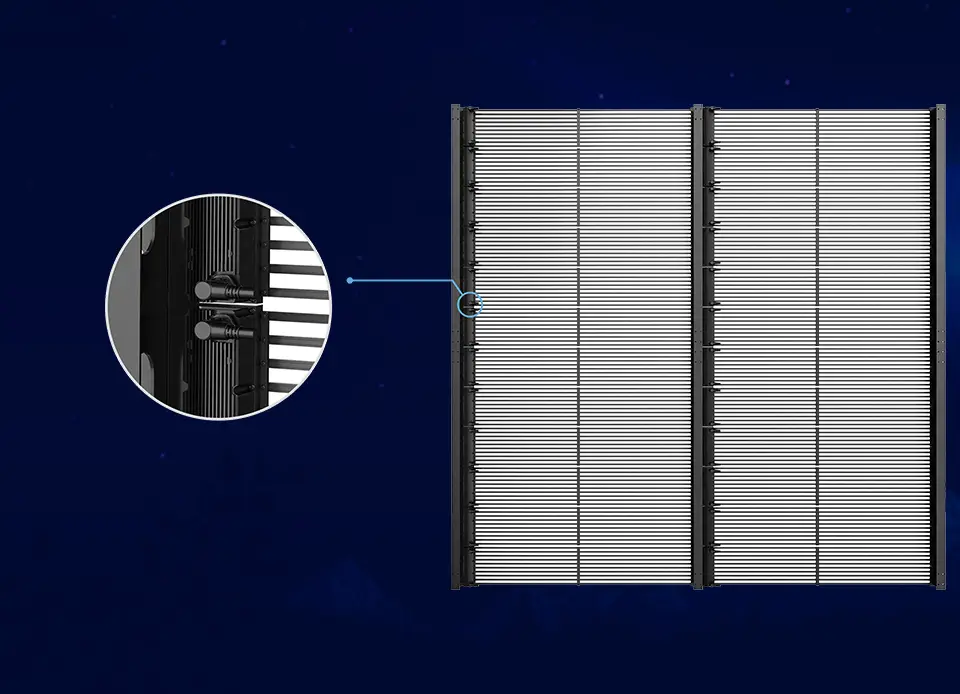

Self-cooling and easy maintenance further reduce long-term operating costs. LED grille screen modules use high thermal conductivity aluminum alloy profiles, combined with natural convection channels, to achieve a cooling solution that requires no external air conditioning or forced fans. Even in high-temperature summer environments, the module temperature can be kept within a safe range, effectively extending the lifespan of the LED beads and driver chips. In terms of maintenance, thanks to the modular structure, if any module or unit fails, it can be disassembled and replaced on-site. Old and new modules can be quickly swapped without needing an overall power outage or removal of large screen areas, ensuring continuous operation for commercial or public venues.

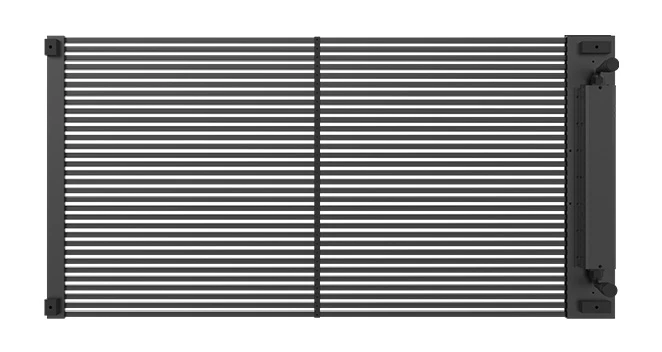

The highly integrated, all-in-one design gives LED grille screens a more aesthetic appearance. The control box, power distribution box, and installation structure are integrated into one unit, with cables discreetly routed, ensuring they don't affect the overall visual effect of the curtain wall. Simultaneously, the highly integrated smart control system supports remote monitoring, automatic brightness adjustment, and scheduled power on/off, facilitating centralized management and energy saving for operators.

In typical cases, a landmark commercial complex utilized LED grille screens to cover its south facade. At night, the grille screens cleverly combine with the building's lighting to create dynamic light and shadow effects. During the day, they are completely transparent, ensuring indoor daylighting and ventilation without leaving the destructive traces on the curtain wall's aesthetics and natural light that traditional large screens often do. Another sports venue project used grille screens to create a circular track outer wall, displaying dynamic countdowns, schedule information, and sponsor advertisements during major events, becoming a unique advertising medium outside the venue.

With the further maturity of Mini/Micro-LED technology and flexible packaging technology, LED grille screens will evolve towards higher resolution, lighter weight, and higher refresh rates. Concurrently, their integration with IoT, 5G signal coverage, and urban digitalization platforms will transform grille screens from mere visual display devices into urban information interaction terminals. They will be able to access diverse data such as real-time weather, traffic, public safety, and commercial pushes, enabling interactive experiences and smart management, truly making building facades "breathing, thinking" digital screens.

With their comprehensive advantages of being "lightweight, openly transparent, self-cooling, modular, and intelligent," LED grille screens offer an innovative display solution for high-rise building exteriors and large-area curtain walls. Whether for commercial advertising, urban landscapes, cultural performances, or smart parks, LED grille screens can achieve seamless integration of space and content, injecting digital life and artistic charm into modern architecture. Choosing LED grille screens means embracing the infinite possibilities of the next era of architectural display.
