LED Flexible Screen (aka LED Soft Screen) - Highly Flexible and Bendable LED Display

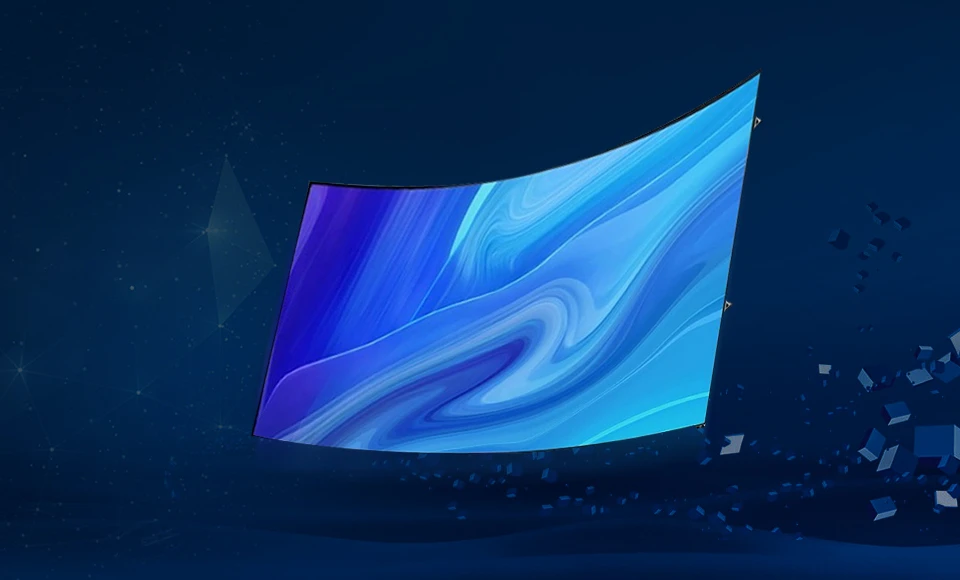

The deep integration of architecture and digital media means traditional flat displays can no longer meet the dual demands of modern spaces for both form and function. LED flexible screens have emerged in response, with "bendable, rollable, and spliceable" as their core concept, allowing displays to break free from flat surfaces and become an integral part of the spatial fabric.

The product range covers various pixel pitches, including P1.2, P1.5, P1.8, P2, P2.5, and P3. Module dimensions are uniformly 320×160 mm, with resolutions varying from 256×128 to 104×52, meeting display requirements for viewing distances between 1.9 m and 4.5 m. Equipped with high-quality LED beads such as SMD1010/SMD1212/SMD1515, the color temperature ranges from 11000–15000 K, brightness is freely adjustable from 0–800 cd/㎡, grayscale level reaches up to 14 bits, and the refresh rate is up to 7680 Hz, effectively suppressing flicker for softer images and better eye protection.

1. Flexible Soft Module and Passive Cooling

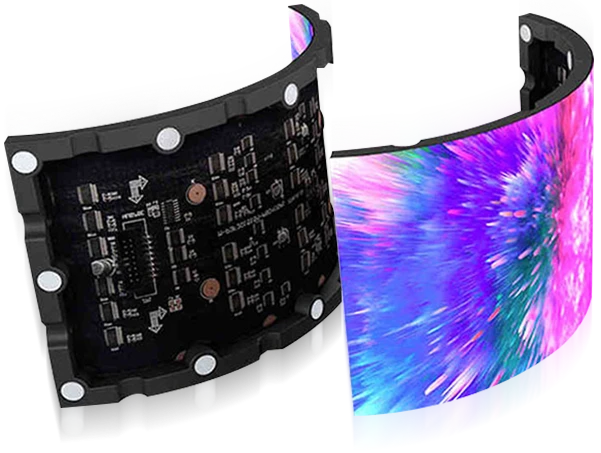

PCB flexible soft boards combined with a rubber back shell give the screen body its thin, light, and bendable characteristics, with single module thickness of only a few millimeters. The passive cooling design eliminates the need for external fans, reducing operating noise and simplifying maintenance. The module surfaces fit perfectly, with seamless joints, ensuring overall smooth and aesthetic appeal.

2. Arbitrary Curved Surfaces and Design Freedom

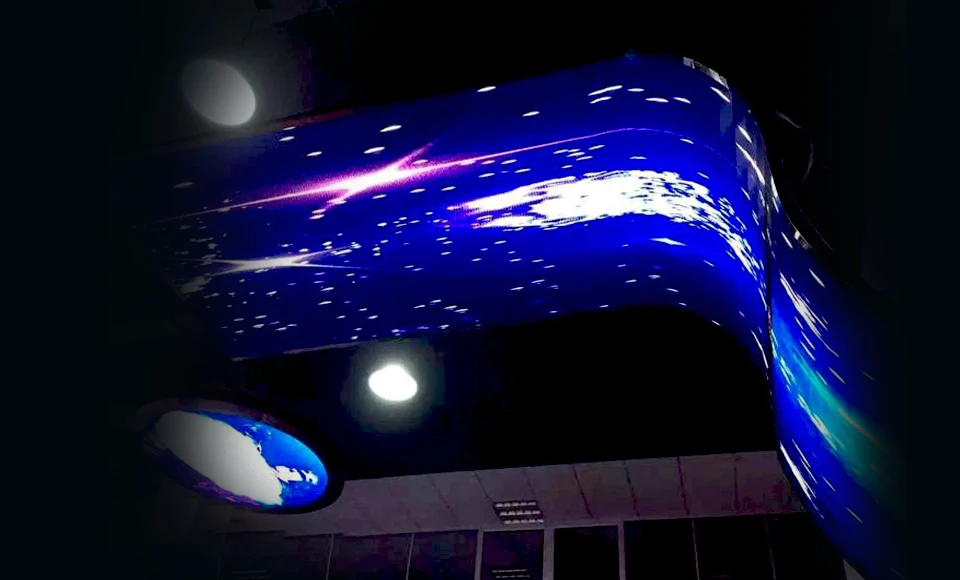

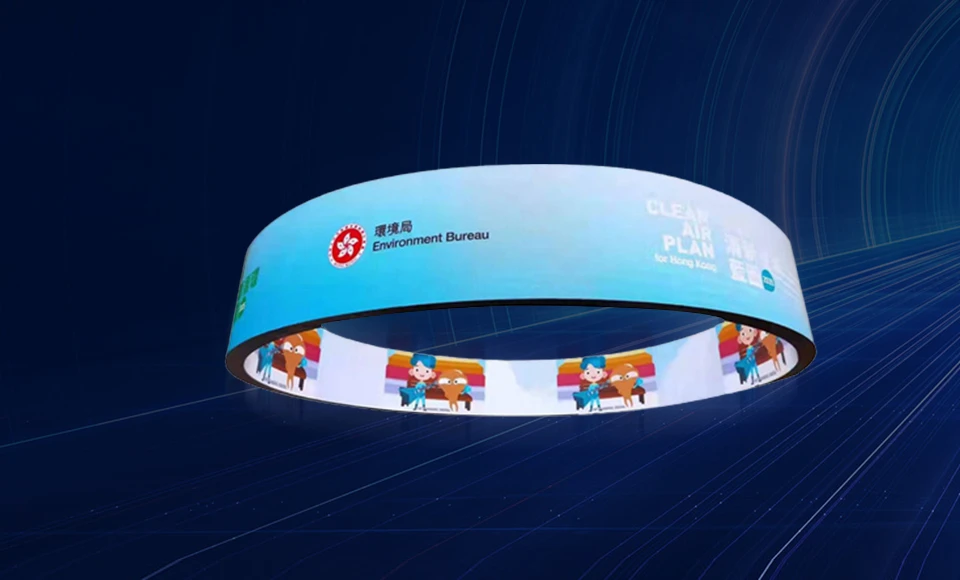

The product supports splicing angles of 150°–180°, with a minimum bending diameter of 406.6 mm. It can be quickly assembled into various irregular shapes such as cylinders, rings, S-shapes, waves, arches, and columns, meeting diverse indoor and outdoor design requirements. Designers can flexibly define curved shapes according to project needs, injecting dynamic vitality into building facades, commercial spaces, and art installations.

3. Zero Trailing Circuit and Clear Images
Common flexible screens on the market often exhibit trailing and "caterpillar" artifacts during fast-moving scenes. This product adopts patented circuit anti-trailing technology, which adds a blanking impedance circuit to address the LED scan discharge delay characteristics, completely eliminating trailing effects. Whether playing high-definition videos or live broadcasts, it delivers a clean, smooth, and ghost-free visual experience.

4. Modular Magnetic Front Maintenance
After installation, if maintenance is required, modules can be easily removed from the front of the screen using the magnetic design and quickly replaced with a special tool. After repair, they magnetically re-attach into place, eliminating the need to open the back casing or dismantle the entire structure, significantly improving operation and maintenance efficiency and reducing overall costs.

5. Comprehensive Safety and Stability

• IP50 Protection: Dust and foreign object protection for daily indoor environments.

• Wide Temperature and Humidity Adaptation: –20℃50℃, 10%90%RH non-condensing.

• Long Lifespan: 100,000 hours service life, average fault-free time ≥6500 hours.

• Electrical Protection: Over-current, over-voltage, and leakage protection ensure safe use.

Typical Application Scenarios

• Transportation Hubs: Station column wrap-around screens, waiting hall advertising columns.

• Hotels & Clubs: Lobby column screens, circular ceiling decorations.

• Commercial Spaces: Shopping mall escalator screens, staircase curtain walls, window wrap-around advertisements.

• Medical Institutions: Hospital wayfinding columns, waiting area information screens.

• Enterprise Exhibition Halls: Data visualization wrap-around screens, interactive art installations.

• Events & Performances: Stage backdrops, exhibition hall columns, brand launch event installations.

Selection Guide

• Viewing Distance: Choose P1.2 for 1.9–2.3 m; P1.5 for 2.3–2.8 m; P1.8 for 2.8–3.8 m; P2–P3 for >3.8 m.

• Brightness Requirements: 800 cd/㎡ is sufficient for regular indoor scenes; choose a higher brightness version if exposed to direct strong light.

• Installation Form: Determine the minimum splicing diameter and splicing angle based on the curved surface radius and shape, and reserve positions for power and signal interfaces.

With their excellent flexible splicing capabilities, delicate and ghost-free image quality, and efficient modular maintenance design, LED flexible screens offer endless creative possibilities for various indoor and outdoor spaces. Whether for architectural facades or artistic installations that adorn spaces, they can easily handle any task, infusing your projects with the dual charm of technology and aesthetics. Contact us for solution design and prototype demonstrations!
