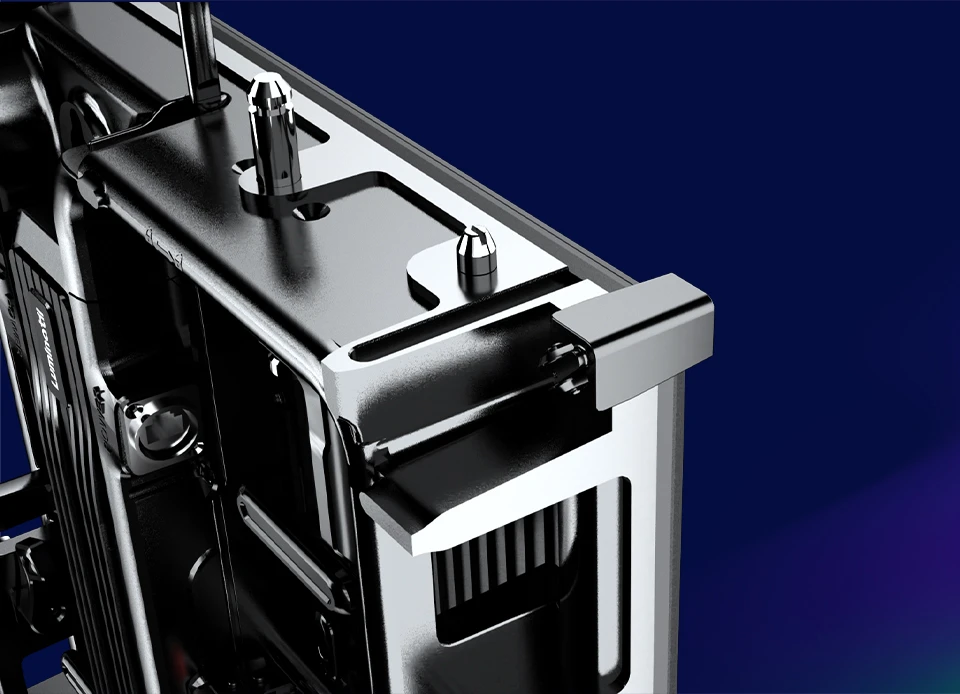

Lightweight & Portable
Each cabinet weighs only 4 kg and is 80 mm ultra-thin, making it easy to carry by hand. It supports
LED Display Screen (Rental Series)
Lightweight, high-brightness, modular display solution, helping make events shine. Example: A plug-a
- Pixel Pitch (mm)
- P2.9 、P3.9
- Overall Dimensions (mm)
- 250x250mm
- Visual Transparency
- 0%
- Brightness (cd/m²)
- 800nits
Product Advantages
Plug and Play
Easy to transport, no assembly required, plug in and use.
3D Holographic Imaging
High transparency, creating a glasses-free 3D effect.
HD Display
Integrated driver and lamp, 16-bit grayscale, delicate image quality.
High Brightness, High Contrast
Brightness up to 5000cd/m², fearless of strong light.
Multiple Installation Options
Supports standing, hanging, splicing, and other methods.
Smart Cloud Control
Supports remote cluster publishing and management.
Slim and Lightweight Design
Minimalist aesthetics, perfectly blending into various environments.
Wide Viewing Angle
160° ultra-wide viewing angle, reaching more viewers.

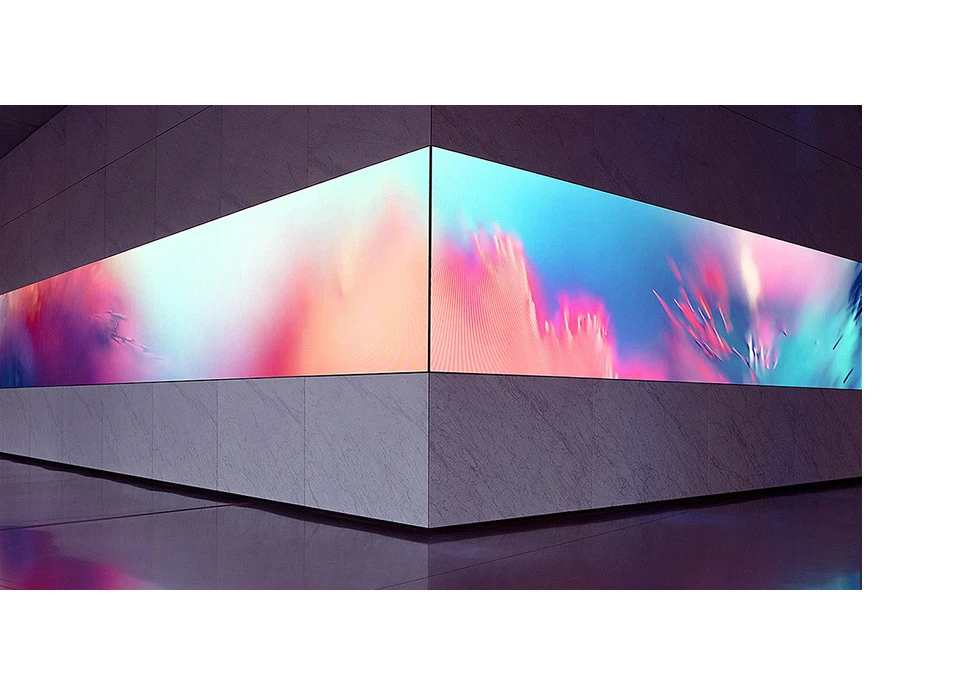

High Brightness & High Definition
Brightness ranges from 800–5000 nits, with a 3840 Hz flicker-free refresh rate, delivering delicate picture quality and vibrant colors, ensuring clear visibility both outdoors during the day and on stage at night.

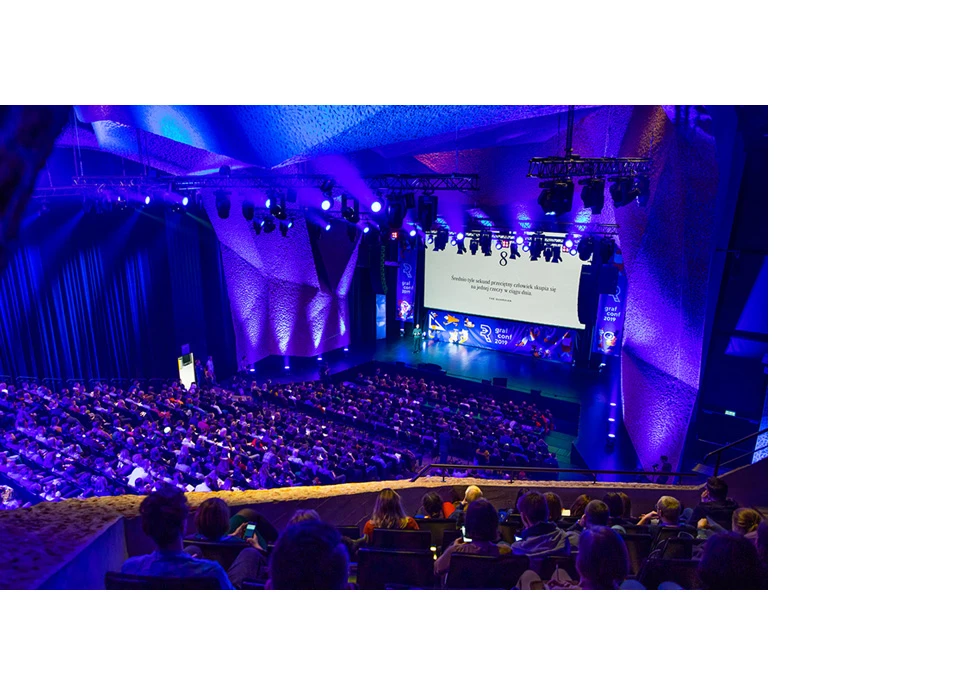

Energy-Efficient & Eco-Friendly
Features an air-conditioner-free heat dissipation design, with an average power consumption of only 200–300 W/㎡. It complies with green energy-saving standards, reduces operating costs, and extends equipment lifespan.
Specifications
| Specification | ZM-P2.6 | ZM-P2.9 | ZM-P3.9 | ZM-P2.9 | ZM-P3.9 |
|---|---|---|---|---|---|
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 2.9mm | 3.9mm |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1415 |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Module Resolution | 96x96dots | 84x84dots | 64x64dots | 84x84dots | 64x64dots |
| Cabinet Size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet Resolution (dots) | 192x192/192x384 | 168x168/168x336 | 128x128/128x256 | 168x168/168x336 | 128x128/128x256 |
| Pixel Density | 147456dots/m² | 112896dots/m² | 65536dots/m² | 112896dots/m² | 65536dots/m² |
| Scan Rate | 1/32 | 1/21 | 1/16 | 1/14 | 1/16 |
| Brightness | 800nits | 800nits | 800nits | 5000nits | 5000nits |
| Cabinet Weight | 6.5kg | 6.5kg | 6.5kg | 7.4kg | 7.4kg |
| Power Consumption | Max. 600W/m² Ave. 200W/m² | Max. 800W/m² Ave. 300W/m² | |||
| Protection Rating | Indoor IP30 | Outdoor IP65 | |||
| Refresh Rate | 3840HZ | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Viewing Angle | 140°/140° | ||||
| Operating Voltage | AC 110V-220V | ||||
| Operating Environment | -10℃ to +60℃, 10%-90% RH | ||||
Product Details
| In today's highly competitive event market, outstanding visual presentation often determines brand image and audience experience. Whether it's a large-scale exhibition, a business launch, a concert, or a sporting event, you need a display screen that combines high brightness, high resolution, rapid deployment, and low operational costs. LED rental screens are designed precisely to meet all these demands, offering you a one-stop, full-scenario LED display solution. |

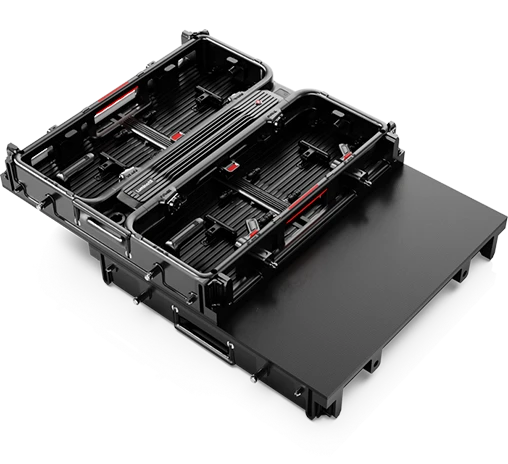

1. Modular Design, Rapid SetupLED rental screens utilize standard 250 × 250 mm modules. Each cabinet weighs only 4 kg and is 80 mm thick, making it easy for a single person to transport. On-site, you can seamlessly connect cabinets using "quick-release buckles": three steps to lock, four steps to test, and one cabinet is installed. Disassembly is just as convenient, allowing for quick changes in seconds and fast folding/stacking. This significantly reduces equipment setup and teardown times, helping event organizers boost efficiency. |
2. High Brightness & Definition, No Visual Dead EndsWith a brightness range covering 800–5000 nits, our screens ensure all-day performance both indoors and outdoors. A super high refresh rate of 3840 Hz guarantees flicker-free, eye-friendly viewing, delivering a level of delicate, lifelike imagery that LCD screens simply can't match. Combined with a selection of pixel pitches from 2.6 mm to 3.9 mm, these screens meet diverse needs, from close-up fashion shows to large-scale stages, perfectly displaying brand logos, video clips, and live interactive content. |
3. Air-Conditioning Free Cooling, Green Energy SavingTraditional large screens often rely on air conditioning for cooling, which not only takes up space but also increases energy consumption. Our screens feature a natural convection cooling design, eliminating the need for additional refrigeration equipment. Actual tests show an average power consumption of just 200–300 W/㎡, with peak consumption controlled within 600–800 W/㎡. You'll not only save on electricity bills but also reduce cooling equipment rental and maintenance expenses, providing a green, eco-friendly, low-carbon experience for your entire event. |

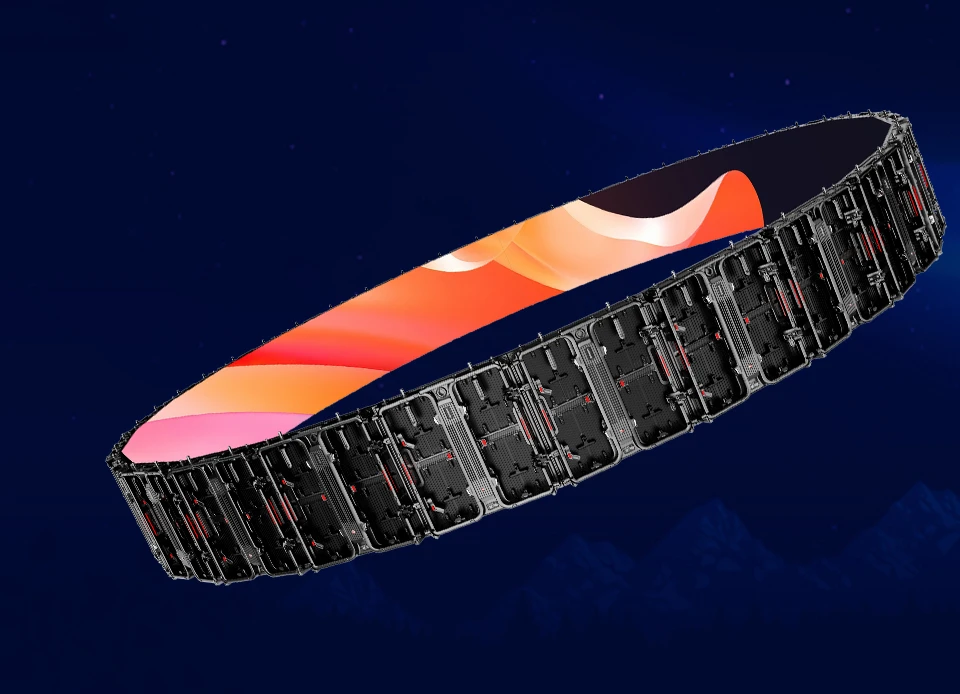

4. High Transparency, Breaking Visual BoundariesA super high transparency design of 75% allows our LED screens to not block light when used in glass curtain walls or light box scenarios, perfectly blending natural light with screen display. Furthermore, they support ground screens, multi-structure splicing, and 45° angled splicing, enabling flexible creation of various shapes such as single screens, circular screens, or archways. This meets the aesthetic and personalized needs of exhibition halls and stages. |

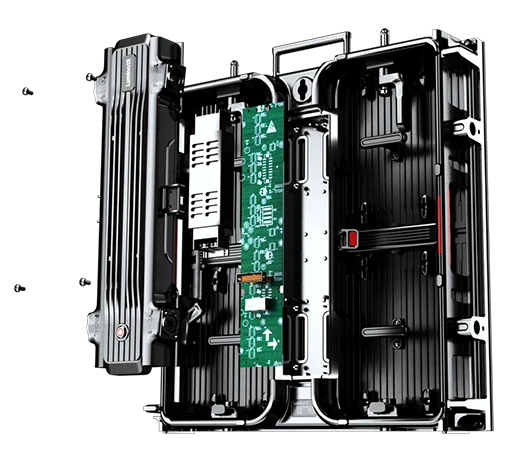

5. Front & Rear Dual Maintenance, Ensuring Worry-Free OperationWith front and rear dual maintenance access, modular power supplies and driver boards can be easily removed and replaced, allowing any wear or fault point to be reset within 5 minutes. Thoughtful corner protection and robust ingress protection ratings (Indoor IP30 / Outdoor IP65) ensure the equipment remains rock-solid even with frequent movement and in complex environments, reducing fault rates and enhancing stability. |
6. Comprehensive Support Services, Professional Technical AssistanceWe boast a professional installation team and 24/7 technical response, providing you with full-process services from solution design, on-site setup, debugging and maintenance, to after-sales care. We can also customize exclusive demonstration plans based on project requirements, offering on-site trial setups, video production, and director coordination, helping you achieve one perfect event after another. |
7. Truly User-CentricWe understand that the success of an event depends not only on exquisite craftsmanship but also on insight into user needs. Centered around "rapid deployment, ultimate image quality, green energy saving, and worry-free maintenance," our LED rental screens are tailor-made to your venue size, budget constraints, and visual effect expectations, saving you time, reducing worries, and making your event even more brilliant. |
| Choosing LED rental screens means opting for a professional display solution that offers efficient execution, reliable stability, and flexible customization. Whether you're hosting a large-scale event for the first time or seeking higher-quality visual presentations, we can meet your needs and exceed your expectations. Contact us today to start your spectacular visual journey and make every event an industry highlight! |
Application Topology Diagram
Frequently Asked Questions
An LED rental screen is a modular LED display device specifically designed for exhibitions, conferences, concerts, and large-scale events. Its lightweight cabinets and quick setup allow for flexible splicing to any size based on the venue, providing an i
Whether it's indoor or outdoor exhibitions, business presentations, outdoor performances, sports events, or large gatherings like weddings and annual meetings, LED rental screens can provide bright, seamless visuals, meeting high-standard display needs ac
Featuring a "quick-release lock" modular design, a single person can complete the installation and disassembly of a cabinet in just minutes. With dual front and rear maintenance access, faulty modules at any location can be quickly replaced without needing to dismantle the entire screen, significantly reducing maintenance costs.
