LED Crystal Film Screen, Soft Film Screen

I. Product Overview

The LED Crystal Film Screen is an ultra-thin, transparent LED display solution that perfectly integrates LED light sources with a thin substrate. It is specifically designed for glass curtain walls and irregular venues. Breaking through the bulkiness and high energy consumption challenges of traditional displays, it achieves a high degree of integration between "invisibility" and "display" functions. Without compromising building daylighting and transparency, it injects dynamic visual effects into urban nightscapes and indoor spaces.

II. Outstanding Appearance

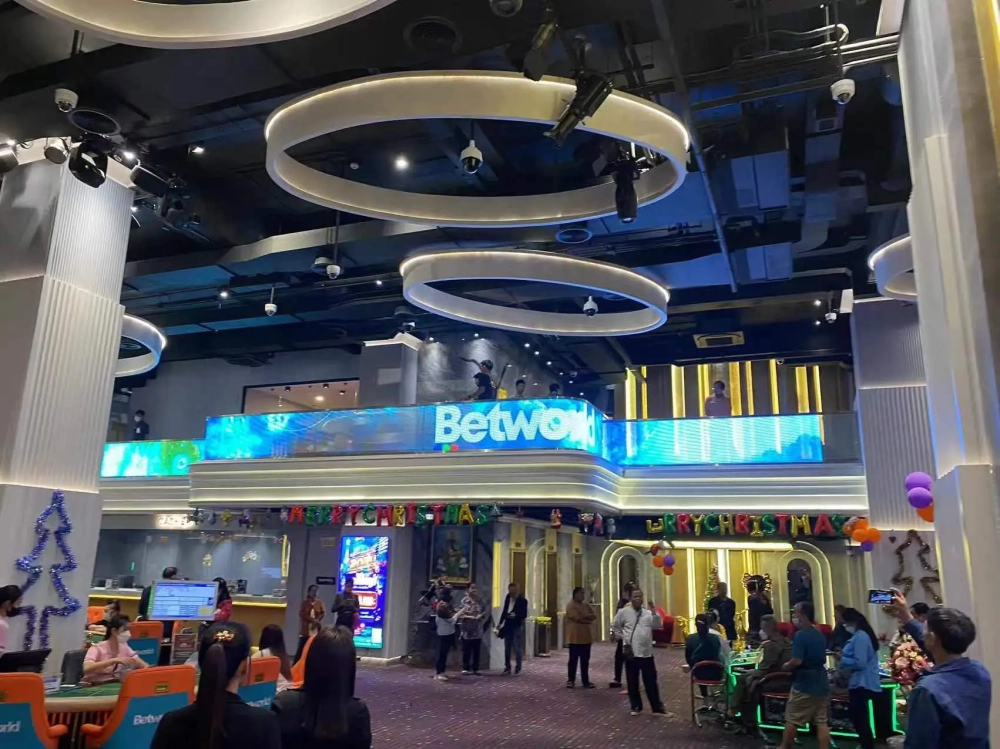

With a backplateless integrated design, the LED Crystal Film Screen's modules, only 2 mm thick, adhere seamlessly to glass curtain walls. From a distance, the glass appears to be self-illuminating; up close, each pixel is clearly vibrant. When powered on at night, the high-brightness images floating on the building facade resemble artistic installations, lighting up the city skyline and enhancing the architecture's technological and modern appeal.

III. Easy Installation

The installation process is quick and efficient: first, pre-drill installation holes on the glass curtain wall, then secure the modules using specialized adhesive or buckle fasteners; finally, connect power and signal cables via quick-plug connectors on the back. The entire process requires no drilling to damage the curtain wall structure and no large hoisting equipment; 2–3 people can complete a large-area installation within hours, significantly reducing construction costs and time.

IV. Customizable

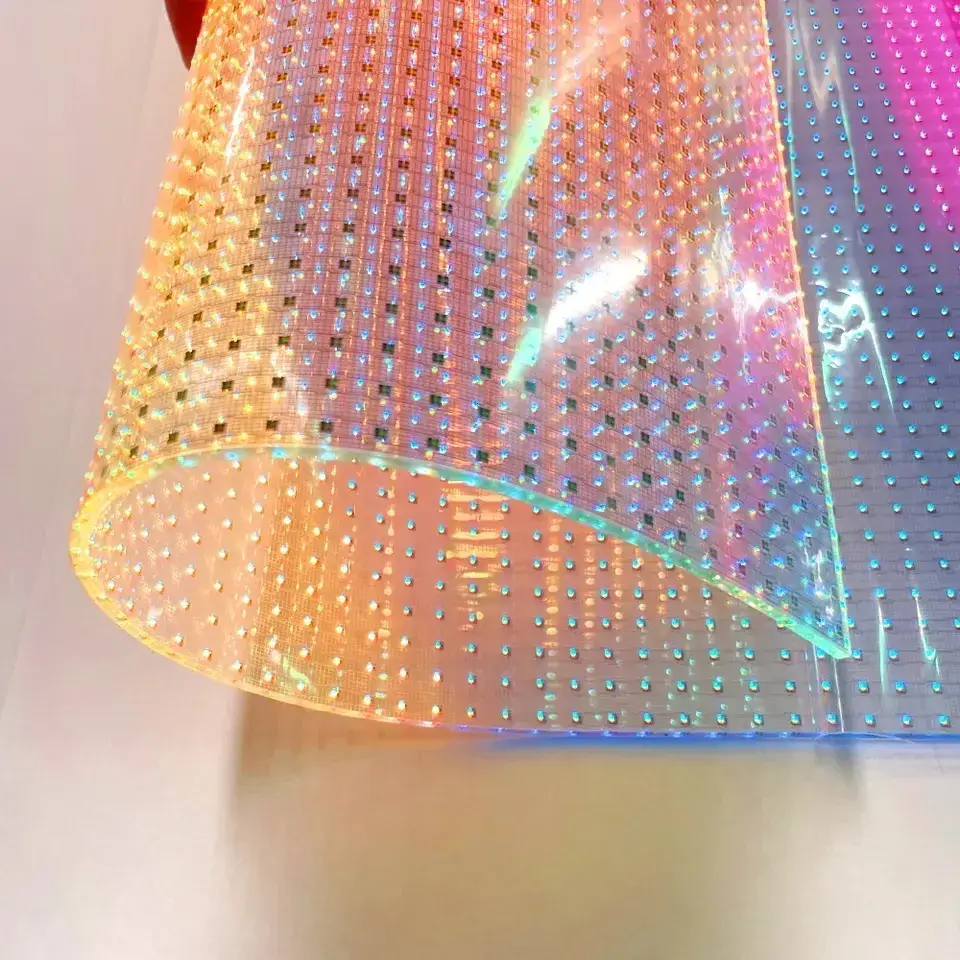

The LED Crystal Film Screen offers seven pixel pitches from P5 to P30, adapting to diverse needs from close-range guidance to long-distance advertising. Module dimensions and corner cutting methods can be customized based on curtain wall keel layout and architectural design, supporting flat, curved, and irregular splicing. Brightness options range from 3000–7000 cd/㎡, meeting the demands of various lighting environments from indoor exhibitions to outdoor facades, truly achieving custom-made solutions.

V. Lightweight and Flexible

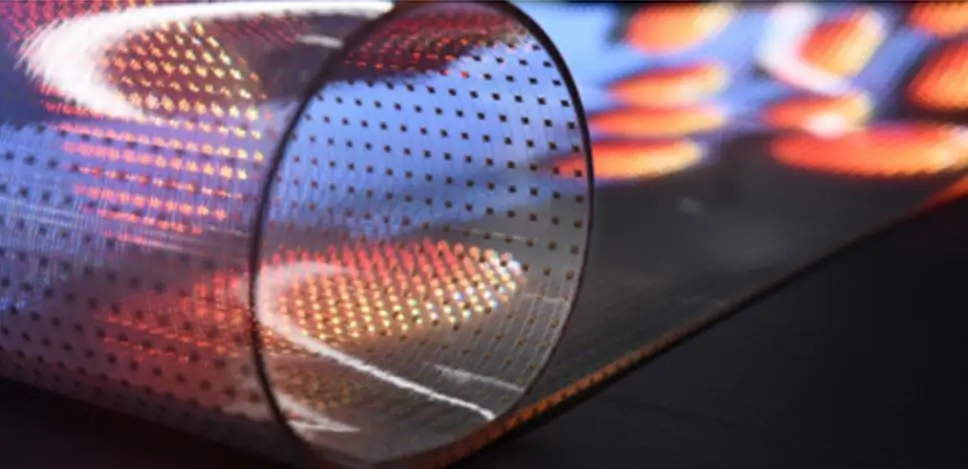

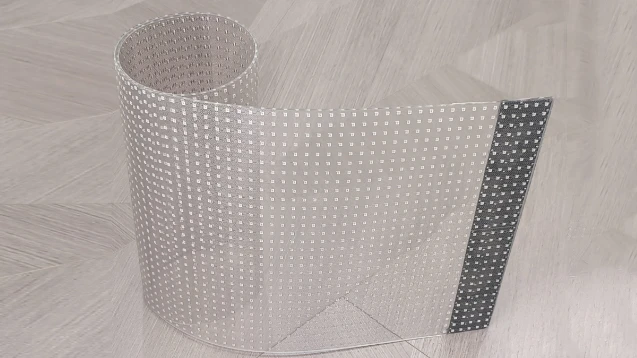

Weighing only 4 kg per square meter and with a module thickness of ≤2 mm, it can conform to curved or irregularly shaped glass. Even on curved curtain walls or cylindrical structures, the screen remains flat and seamless. The high-transmittance substrate allows natural light to pass freely, maintaining the curtain wall's transparency during the day, while transforming into a high-brightness display at night, flexibly switching between "invisible" and "visible" visual effects.

VI. Excellent Picture Quality

The LED Crystal Film Screen utilizes 2121 or 2727 LED lamp beads, 16-bit grayscale, and static single-point drive technology, ensuring accurate color reproduction and natural transitions. Whether it's vibrant commercial animations or dynamic stage effects, it maintains smooth and flicker-free performance in high-brightness environments above 5000 cd/㎡. A 9000:1 ultra-high contrast ratio delivers deeper blacks and purer whites, with clearer detail and layering.

VII. Maintenance and Service

The rear-maintenance design makes inspection and repair more convenient: each module has a maintenance port on its back, requiring only a few hand-tightened screws to be loosened for quick replacement of faulty units, without needing to remove the front panel. Internal power and signal cables use a quick-plug structure, boosting maintenance efficiency by 50%. Additionally, a cloud monitoring platform is provided, offering real-time monitoring of each module's operational status, complete with fault early warning and remote diagnosis capabilities.

VIII. Typical Application Scenarios

• City Landmarks and Commercial Complexes: Dynamic facade displays create iconic visual focal points.

• Theme Hotels and Office Buildings: Hidden displays within curtain walls create a captivating nighttime brand display atmosphere.

• Transportation Hubs and Smart Road Signs: High-brightness announcements combined with advertising improve information dissemination efficiency.

• Museums and Exhibition Halls: Transparent modular displays integrate with artifacts and exhibits for interactive virtual-real experiences.

With its lightweight, transparent, bendable, multi-pixel pitch, and highly customizable features, the LED Crystal Film Screen has become a new favorite for modern architectural curtain walls and commercial displays. It not only meets the dual demands of architectural aesthetics and structural safety but also provides a futuristic display solution for various application scenarios with its excellent picture quality and flexible installation and maintenance advantages. Whether you are a lighting artist pursuing stunning city nightscapes or an innovative communicator for commercial brands, the LED Crystal Film Screen can help you effortlessly achieve a perfect switch between "invisibility" and "visibility."
